3M 35 Vinyl Electrical Insulation Tape Alternatives
Premium Grade Vinyl Color Coding Electrical Tape, Flame Retardant, UV Resistant, Electrical and Mechanical Protection
Augus electrical insulating tape is a replacement for 3M Scotch 35, is a professional-grade 7-mil (0.178–0.18 mm) PVC-backed vinyl electrical tape with a rubber-based pressure-sensitive adhesive, designed for color coding, insulation, and marking in electrical and industrial applications.
Product Overview:
Product Name: Vinyl Electrical Color Coding Tape
Category: Vinyl electrical insulation & color-coding tape
Backing: 7-mil (0.178–0.18 mm) PVC (polyvinyl chloride)
Adhesive: Non-corrosive rubber-based pressure-sensitive adhesive

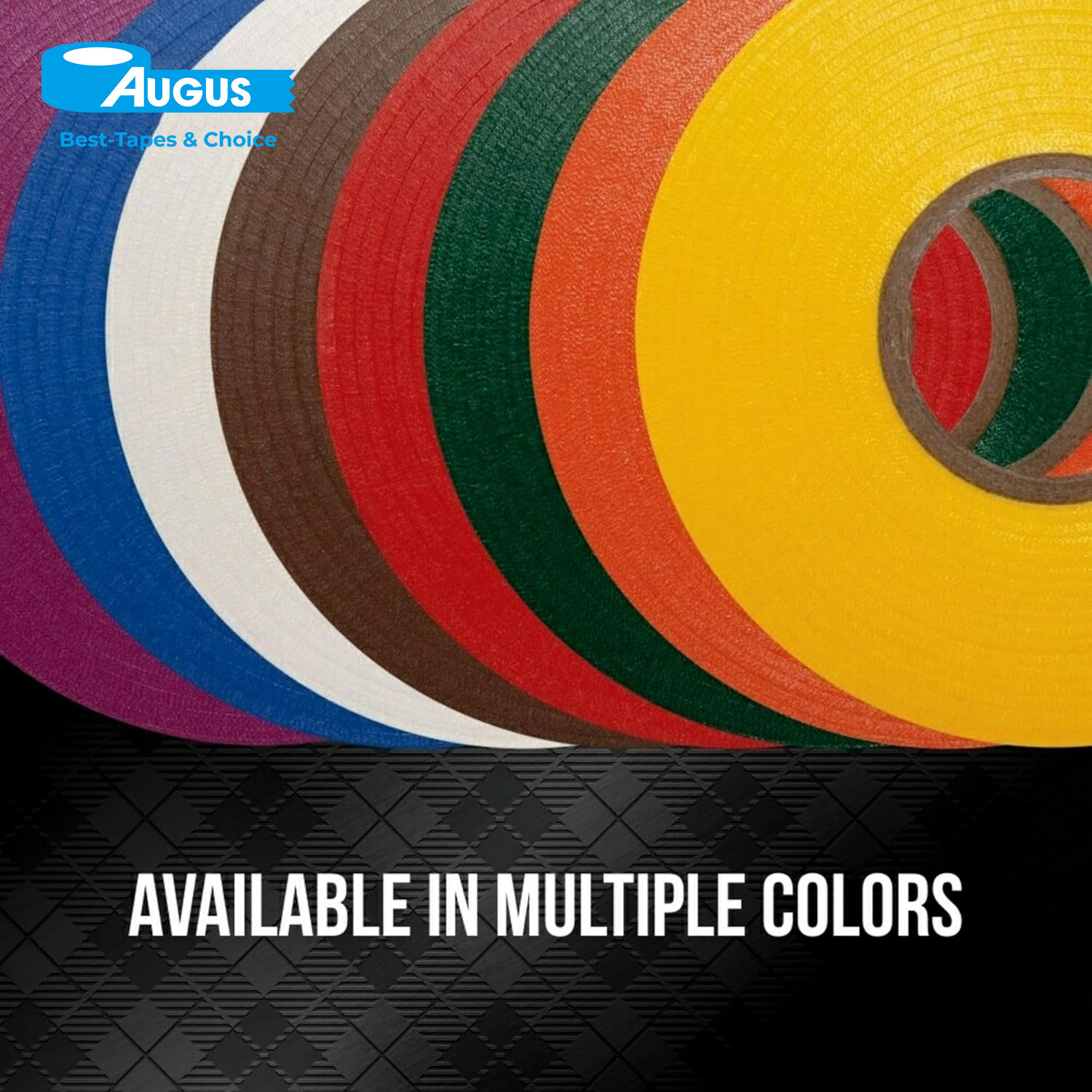

Colors: Blue, Brown, Grey, Green, Orange, Red, Violet, White, Yellow (9 fade-resistant colors)
Core Use Cases: Phase identification, motor lead/piping color coding, safety marking, wire insulation, moisture/abrasion protection
Key Specifications (Typical Values, 23°C Unless Noted):
| Width Options | 1/2 in (12.7 mm), 3/4 in (19 mm) |
| Length | 66 ft (20.1 m) per roll |
| Roll Core | Standard 3 in (76.2 mm) core |
| Packaging | 10 rolls/carton, 100 rolls/case (typical) |
| Voltage Rating | 600 V |
| Temperature Range | -10°C to 105°C (14°F to 221°F) |
| Thickness | 0.178–0.18 mm (7 mil) |
| Breaking Strength | 30 N/10 mm |
| Elongation at Break | 225% |
| Adhesion to Steel | 2.2 N/10 mm |
| Dielectric Strength | ≥1250 V/mil |
| Flame Retardant | Yes |

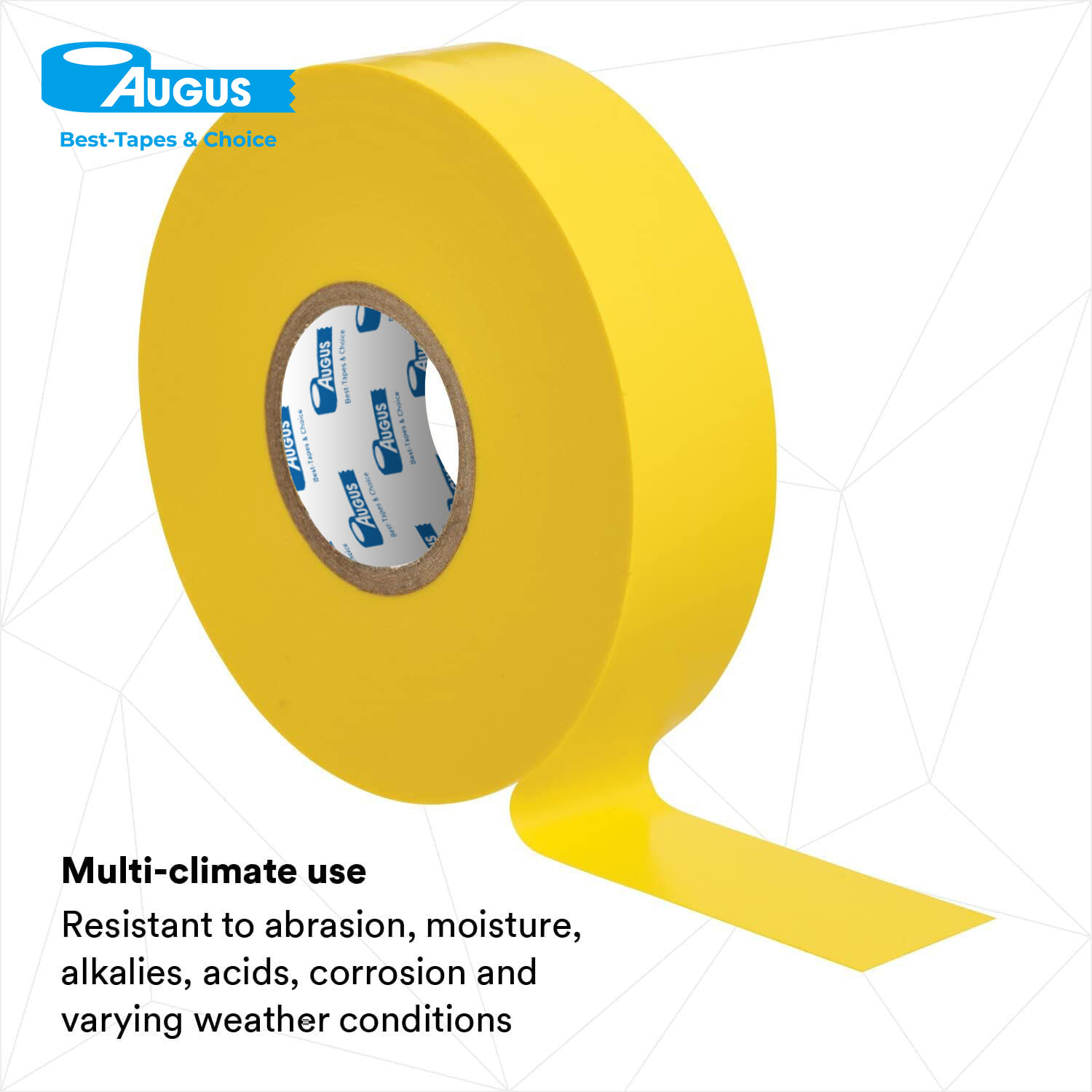

| UV/Moisture/Alkali/Acid Resistance | Excellent |
| Certifications | UL Listed (E129200), CSA Certified (LR 48769), RoHS Compliant |
Compliance & Safety:
UL File: E129200 (Category OANZ: Insulating Tape)
CSA File: LR 48769 (Standard C22.2 No. 197-M1983)
Regulatory: RoHS compliant; non-corrosive adhesive; flame-retardant per global standards
Note: The physical properties shown are tested by ASTM D1000 or our own procedures, it is recommended that the buyer determine the suitability for his own purposes.

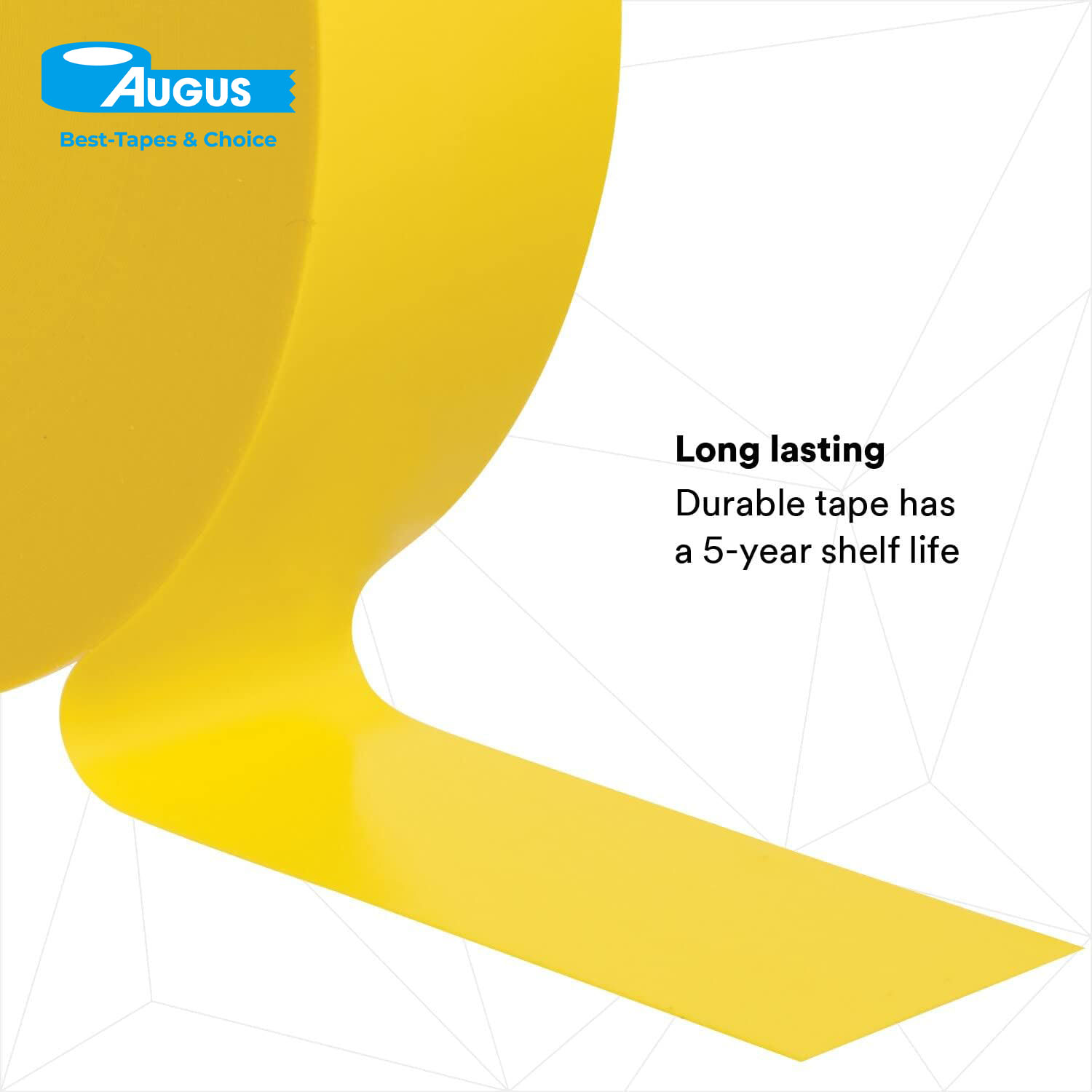

Storage: Shelf life recommended one year from the date of dispatch at the moderate temperature and humidity environment.
